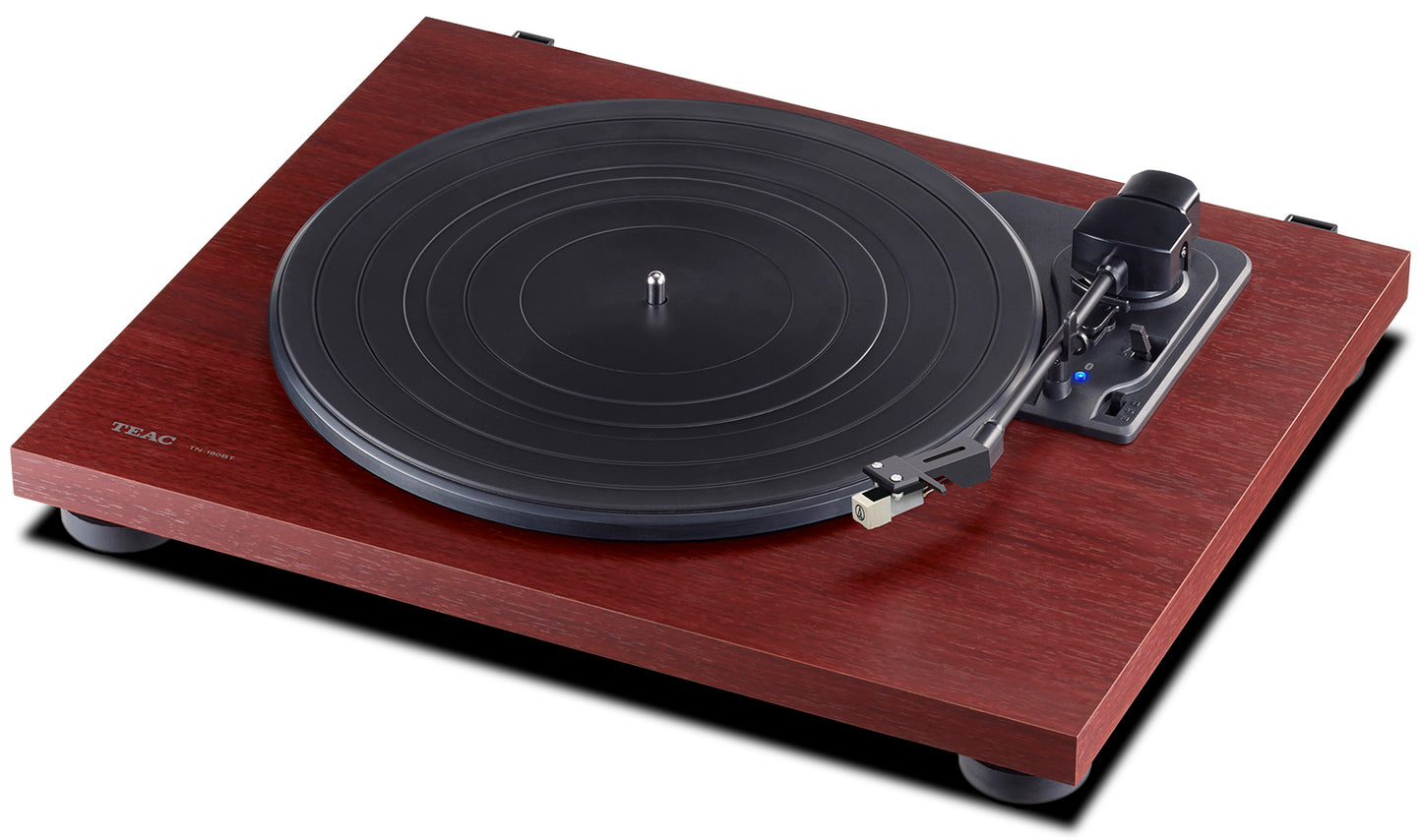

TN-180BT-A3 Bluetooth Wireless Turntable

Featuring Bluetooth® capability, the TN-180BT-A3 is the easiest way to enjoy vinyl.

THE SIMPLEST WAY TO ENJOY VINYL

The TN-180BT-A3 brings you a totally new way of listening to vinyl records with its Bluetooth® capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth® speakers or headphones you might have for smartphones/tablets are required to enjoy the world of vinyl records.

Designed for music enthusiasts, the belt-drive motor ensures a clearer sound than direct-drive DJ players, while selectable outputs, Phono, Line or Bluetooth allow you to connect any type of amplifiers, powered speakers or Bluetooth devices.

Unlike many budget turntables, the TN-180BT-A3 employs a single wooden board cabinet with high-density MDF to dampen vibrations and provide clearer and richer sound, while 3-speed and auto-return turntable mechanism.

For music lovers who have been collecting vinyl records for decades or those just starting out, TEAC’s TN-180BT-A3 delivers the true sound of vinyl records. Available in cherry, black and white finish.

EASY LISTENING

The TN-180BT-A3 delivers the sound wirelessly via a built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the tone-arm base, which illuminates when the connection with BT speakers or the headphones is made successfully.

If you already have a Bluetooth-enabled speaker or headphones for your iPhone/Android phone, all you have to do is to install the TN-180BT-A3 in your room – no pricy hi-fi system and complicated wiring are required –. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready for the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records.

The TN-180BT-A3 also provides conventional ways of connecting to your hi-fi system with or without the PHONO input via cable or an RCA audio cable.

AUTHENTIC 3-SPEED TURNTABLE

The TN-180BT-A3 plays LP, EP, and SP records from your library. The tone-arm automatically returns to the original position when playback is done.

*The groove of the SP (78rpm) records is 3 to 4 times wider than the typical 33 1/3rpm records, so it might damage the stylus and cause the noise when you play back the record with the pre-installed stylus. Please keep it limited use.

PRE-INSTALLED CARTRIDGE

A VM-type (equivalent to MM-type) cartridge AT3600L by Audio-Technica is already installed to the straight-type tone-arm at the factory, so you can start playing records as soon as you open the box.

The authentic belt-drive turntable is driven by a high torque DC motor, while a precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed.

REAL WOOD CONSTRUCTION

Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.

BUILT-IN PHONO EQ AMPLIFIER

Enjoy vinyl playback with any amplifier regardless type of inputs. The TN-180BT-A3 supports both PHONO and LINE outputs that allow you to play vinyl with or without Phono equalizer.

SPECIFICATIONS

Turntable section
Motor	DC Motor
Speed	33 1/3 RPM, 45 RPM, 78 RPM
Wow and Flutter	0.25%
Signal-to-Noise Ratio	64dB or higher (A-weighted, 20kHz LPF)
Platter	Plastic
Diameter of Platter	12", 30cm
Tonearm section
Type	Static Balance, Straight
Effective Arm Length	7.9", 200mm
Stylus Pressure Range	0 to 5g
Cartridge section
Type	VM-type
Output Voltage	3.5mV (1 kHz, 5 cm/s)
Stylus Replacement	audio-technica ATN3600L
Analog Output section
Connectors	RCA Pin x 1 pair (Chrome-plated)
Output Voltage
PHONO	2.4mV (±3dB)
LINE	149mV (–16.5dBV)
Bluetooth® section
Range	Approx. 30ft. / 10 meters
Supported Codec	SBC
General
Power	AC 100 to 240V, 50/60Hz
Power Consumption	< 1.5W (< 0.2W at Standby)
Overall Dimensions (W x H x D)	16.5" x 4.1" x 14.0" 420 x 105 x 356 mm
Weight	Approx. 10.8 lbs. 4.9 kg
Accessories	Rubber Sheet, EP Adapter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)
